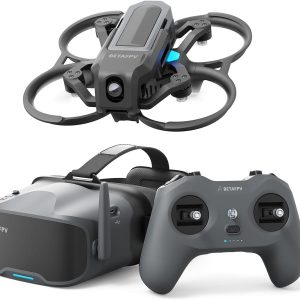

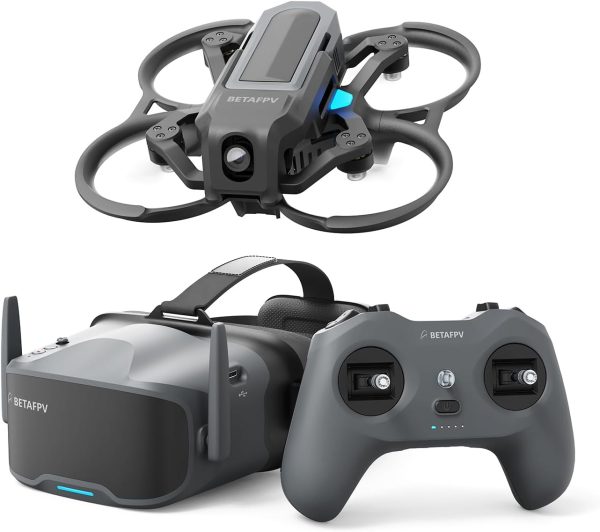

BETAFPV Aquila20 HD FPV Kit

BETAFPV Aquila20 HD quick verdict

Why choose the Aquila20 HD?

The Aquila20 HD fills the gap between an inexpensive analog trainer and a more expensive DJI-style FPV camera drone. The protected frame is built to tolerate normal beginner crashes, while the three flight modes provide a structured progression path.

N Mode uses altitude hold and stable hovering to reduce the workload for a first-time pilot. S and M modes remove the assistance and provide progressively more direct control for flips, rolls and manual FPV flying. Turtle Mode can help turn the drone upright after some crashes without walking over to retrieve it.

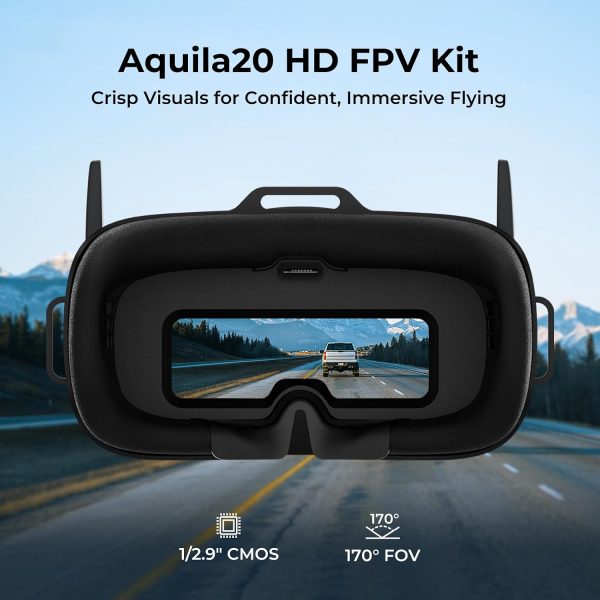

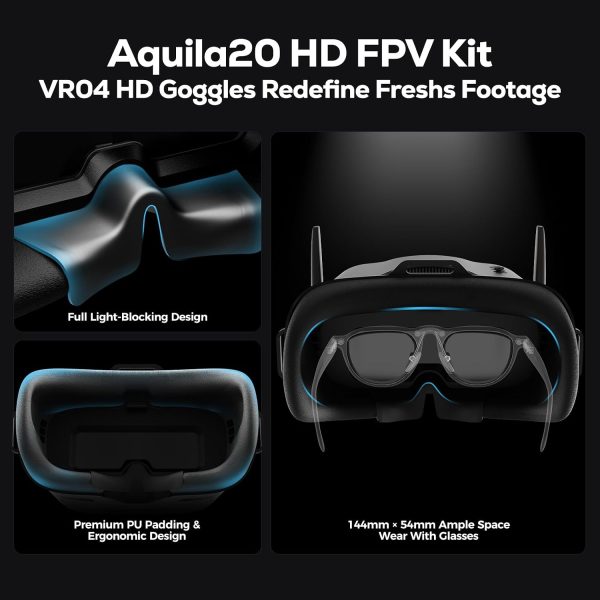

The clearer digital feed is useful when learning because obstacles, branches and orientation cues are easier to see than through a basic analog picture. The VR04 HD goggles can also record the received HD feed to a compatible microSD card.

The P1 and ArtLynk compatibility decision

That distinction matters because digital FPV equipment is not universally interchangeable. Standard analog goggles cannot display the P1 digital signal, and the included VR04 HD goggles cannot automatically receive drones built for unrelated digital systems.

BETAFPV currently identifies the Aquila20 P1, Meteor75 Pro P1 and certain third-party ArtLynk aircraft as compatible options. The ecosystem may grow, but buyers should base the purchase on products that are currently documented rather than assuming future support.

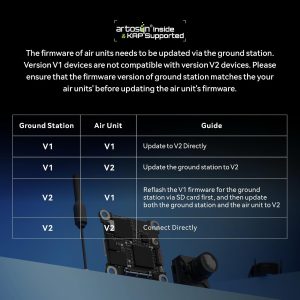

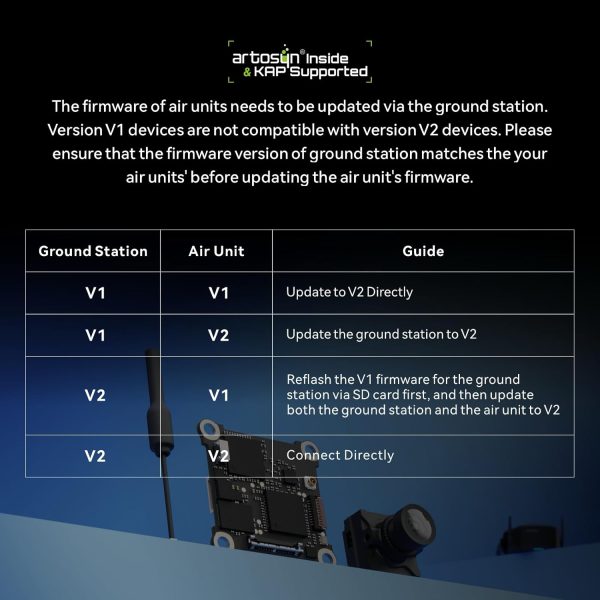

Firmware also affects compatibility. BETAFPV says third-party ArtLynk equipment may require firmware version V2.0.5 or later and warns that V2 firmware is not compatible with earlier V1 versions. The goggles and air unit must be placed on matching compatible firmware before binding or upgrading.

Range and real flight time

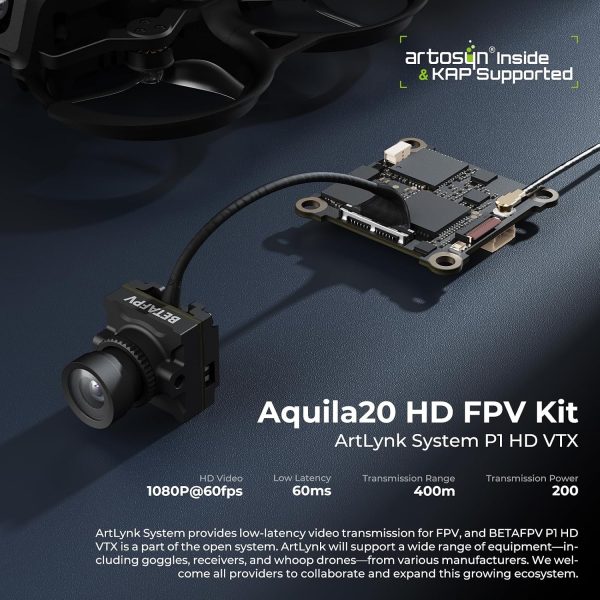

BETAFPV rates the 200mW P1 system for more than 400 meters under suitable conditions. That figure is a transmission-system rating, not a promise that every buyer should fly 400 meters away. Buildings, interference, antennas, firmware, pilot position and local operating rules can reduce practical range.

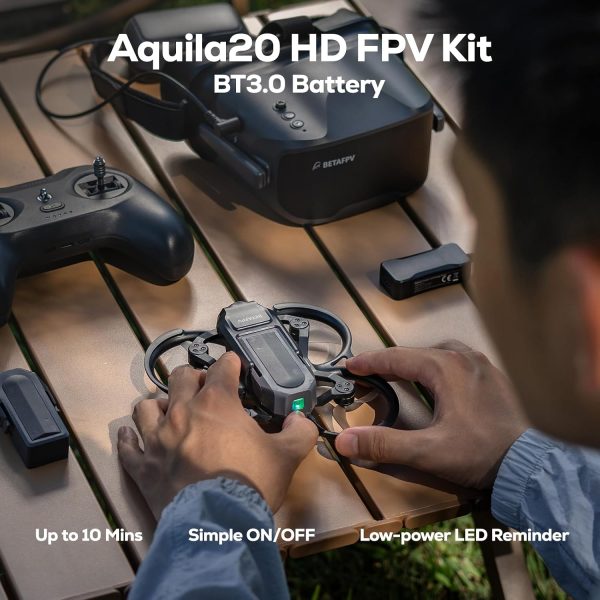

The manufacturer rates flight time at approximately 10 minutes with its proprietary 2S HV 1100mAh battery. Aggressive manual flying, repeated acceleration, wind and battery condition can shorten that substantially. Leave enough power to land safely rather than flying until the video or control system shuts down.

The official standard package contains two flight batteries. This allows alternating flights, but each battery should cool before being recharged.

Controller and simulator training

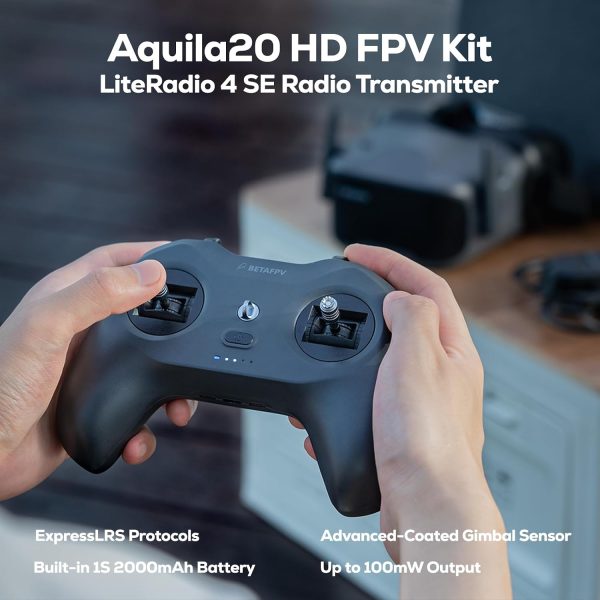

The included LiteRadio 4 SE uses ExpressLRS 2.4 GHz V3 and supports Bluetooth simulator connections. Simulator practice is still valuable even though the drone includes assisted hovering. It allows the pilot to learn throttle control, coordinated turns and disarming before switching to S or M Mode.

BETAFPV rates the controller for more than eight hours of use at its specified output setting. The controller has its own rechargeable battery and uses USB-C charging.

Before every flight, confirm the selected flight mode and identify the arm/disarm control. N, S and M modes behave differently, and accidentally taking off in a manual mode can cause the drone to accelerate much more aggressively than expected.

Important limitations

• Proprietary digital ecosystem: P1 and VR04 HD equipment do not provide automatic compatibility with the larger DJI O4, Walksnail or HDZero ecosystems.
• Firmware management: Digital-system firmware must be compatible across the goggles and air unit. Updates can be more involved than a simple app-based camera-drone update.
• Manufacturer maximums: The 400-meter range and 10-minute flight time are rated figures, not guaranteed results.
• Wind performance: The protected ducted frame has more drag than an open-prop freestyle frame and is best introduced in calm conditions.
• Noise: Small, high-speed propellers can be surprisingly loud indoors.
• Upgrade path: The integrated design is easier for beginners but less flexible than choosing a separate radio, goggles and repairable BNF drone.

Limited retailer feedback is mixed. Owners frequently value the clearer video, stable assisted mode and crash-resistant frame, while some report goggle fit or light-leakage problems, charger frustrations, firmware difficulty and shorter flights during aggressive flying. These are user-reported themes rather than guaranteed outcomes.

One retailer report also describes a thermal warning when the powered drone remained stationary. Digital transmitters rely on airflow, so avoid leaving the aircraft powered on unnecessarily without flying and follow BETAFPV’s current operating and firmware instructions.

What should be included?

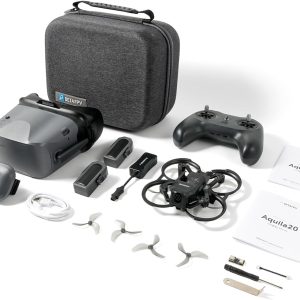

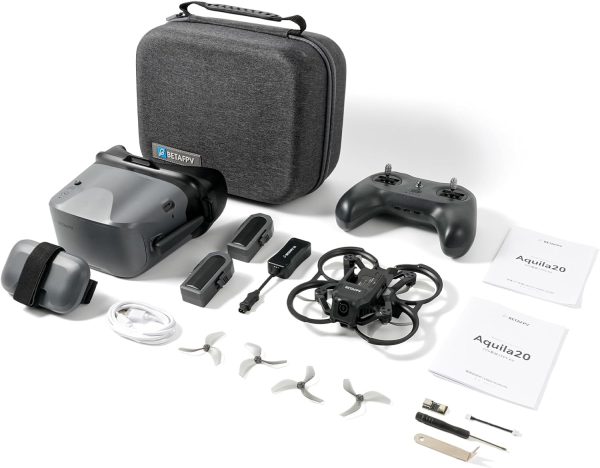

BETAFPV lists the following contents for its standard Aquila20 HD package. Because the current Amazon offer is sold by a third-party seller, verify that the retailer bundle matches before ordering:

• Aquila20 HD brushless whoop quadcopter
• LiteRadio 4 SE radio transmitter
• VR04 HD FPV goggles
• Two Aquila20-exclusive 2S HV 1100mAh flight batteries
• Two rechargeable 18650 batteries for the goggles
• 2S HV battery charger and voltage tester with BT3.0 connector
• One set of Gemfan 2218 three-blade propellers
• USB-C cable and adapter board
• Propeller-removal tool and screwdriver
• Adapter cable, storage bag and user manual

HD or analog Aquila20?

The standard BETAFPV Aquila20 FPV Kit uses analog video and is the simpler lower-cost choice. The HD model adds a clearer 1080p digital feed, longer manufacturer-rated transmission distance and the P1/ArtLynk ecosystem.

Choose analog if affordability and broad analog-goggle compatibility matter most. Choose the HD kit if video clarity is important enough to justify committing to its smaller digital ecosystem.

If you want stabilized 4K recording and a more integrated cinematic FPV experience, compare the DJI Avata 2. It is a different and more expensive class of product, but it provides a clearer upgrade path for creators.
