DJI Avata 2 Battery Guide: Plan on 16 to 18 Minutes per Pack

What DJI's 23-minute flight-time claim actually means

DJI lists an approximate maximum flight time of 23 minutes for Avata 2. That number is useful for comparing the platform with other aircraft, but it is not a promise that every flight will last 23 minutes. DJI measured it in a windless environment at sea level while the aircraft flew forward at a constant 21.6 kph until battery depletion. DJI also lists about 21 minutes of maximum hover time under controlled conditions.

A real flight includes takeoff, positioning, turns, climbs, accelerations, hovering, and a return margin. The battery percentage also continues falling while the pilot chooses a landing spot. Treating 23 minutes as a scheduled landing time leaves no room for those variables.

Realistic usable flight-time planning

A reserve-based calculation gives a safer and more repeatable way to plan an outing. Start with DJI's 23-minute maximum and choose the percentage you do not intend to use in the air. This is only arithmetic: it does not attempt to predict the precise low-battery warning, forced-landing behavior, or battery percentage at which every pilot should land.

That produces the 16-to-18-minute planning range used in this guide. A pilot who remains close to the launch point in calm weather may be comfortable near the upper end. A distant route, strong wind, repeated full-throttle runs, cold weather, or an aging pack justifies an earlier return.

What tends to reduce usable time

• Wind: The aircraft may spend more power holding position or returning against a headwind.
• Aggressive flying: Frequent acceleration, climbing, and rapid direction changes raise power demand.
• Temperature: Battery performance and charging behavior change outside moderate conditions. DJI allows charging only from 5°C to 40°C.
• Battery condition: Capacity and voltage behavior can change as a pack ages and accumulates cycles.
• Mission overhead: Takeoff, framing a shot, re-flying a line, and reaching the subject all consume the same battery as the main footage.

How many DJI Avata 2 batteries should you buy?

For most owners, three batteries are the practical sweet spot. They provide enough planned airtime to explore a location, repeat several lines, and capture usable footage without making the entire outing depend on one charge. Two packs are a sensible lower-cost setup when sessions are short. Four or more begin to make sense for travel days, paid work, or locations where recharging is unavailable.

Battery count should follow the length of the outing, not the longest theoretical single flight. If you normally film for an hour at one location, three batteries create a workable rhythm. If the aircraft comes out for one quick line in the backyard, a second pack may be enough. If missing a shot has a real cost, build in both an extra battery and extra time rather than planning every pack to its limit.

For a bundle-level decision, compare the inclusions in the DJI Avata 2 one-battery and three-battery combos. The important difference is not merely two extra cells; it is whether the package also supplies the hub and a complete field-to-home charging workflow.

Charging hub versus charging through the aircraft

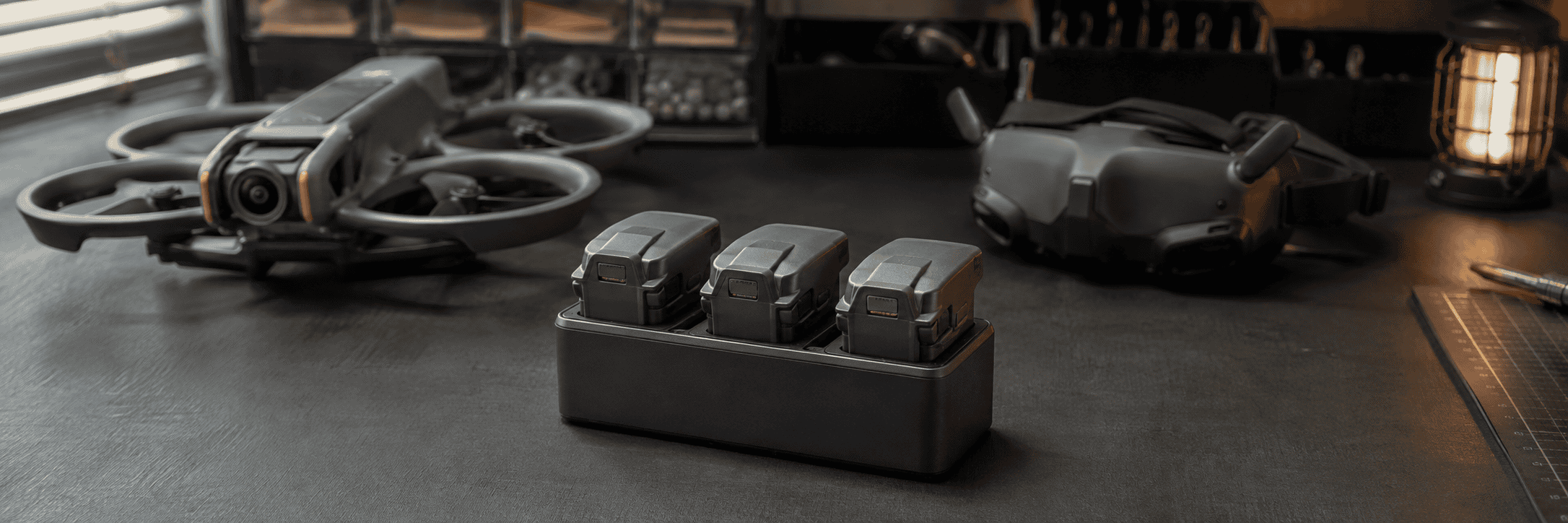

Avata 2 can charge a battery through the aircraft's USB-C port or through the DJI Avata 2 Two-Way Charging Hub. The hub is significantly faster when supplied by a compatible charger and is the more convenient option for multiple packs. It stores up to three batteries and charges them in sequence.

Because the hub charges sequentially rather than simultaneously, three fully depleted packs would take about 135 minutes to reach 100% if each required DJI's 45-minute estimate. That 135-minute figure is FPV Drone arithmetic, not a separately published DJI three-pack result. Batteries that return with some charge remaining will need less time, while temperature, charger output, and the final slow portion of a charge can change the total.

A USB Power Delivery charger is the most flexible choice. DJI recommends its 65W Portable Charger, its 65W Car Charger, or another USB PD charger. A lower-power source may still be useful, but it cannot reproduce the fastest published hub time. Check both the charger's rated output and the cable, since the power path is limited by the weakest component.

How the DJI Avata 2 Two-Way Charging Hub works

The three bays do not make the hub a simultaneous three-battery charger. Instead, it identifies the battery with the highest state of charge, finishes that one first, and then moves to the next. This order gets one flyable pack ready sooner than a lowest-first system would.

Power accumulation

With at least two batteries installed, holding the hub's function button can transfer remaining energy into the battery that already has the highest charge. This can turn several partly depleted packs into one more useful pack before leaving a location. It does not create extra energy, and normal conversion losses mean the receiving battery will gain less energy than the other packs give up.

Power-bank output

With at least one battery installed, the hub can power or charge another device through USB-C. DJI lists up to 65 W for the power-accumulation output and a separate 5 V/2 A USB output in the hub specifications. This is convenient for goggles or a phone, but it uses flight energy. Decide whether another aircraft battery or another device is more important before using it in the field.

A simple three-pack routine

1. Number the batteries so unusual behavior can be traced to a specific pack.
2. Start the outing with all packs charged and visually inspected.
3. After each flight, allow the battery to return to DJI's 5°C to 40°C charging range.
4. Place used packs in a separate side of the bag or rotate their orientation so they cannot be confused with full ones.
5. At home, load the hub and let the highest-charge battery finish first.
6. Before storage, remove damaged or swollen packs from service and avoid leaving every battery at 100% for long periods.

The hub is designed specifically for the Avata 2 Intelligent Flight Battery. Do not assume an original DJI Avata battery, an original Avata hub, or a generic hobby charger is compatible simply because the aircraft names are similar.

One-battery bundle or three-battery bundle?

The one-battery route is defensible when the Avata 2 will be flown occasionally, near home, and for short sessions. It keeps the initial purchase smaller and lets the aircraft charge directly through USB-C. The drawback is that an 88-minute official 0%-to-100% aircraft-charging estimate is far longer than a planned 16-to-18-minute flight.

The three-battery route is usually the cleaner ownership setup. It provides roughly three times the planned field time and pairs naturally with the three-slot hub. It also reduces pressure to drain a battery deeply just to finish one more line. The hub still charges sequentially, so it improves organization and first-pack readiness rather than making three packs charge at once.

Compare the full package, not only the number in the bundle name. Retail listings can differ by controller, goggles, hub, spare propellers, and charging accessories. DJI's box contents and retailer titles can also change by region or promotion. The full DJI Avata 2 review covers the broader aircraft and bundle decision.

Storage, care, and airline travel

Smart-battery management removes some guesswork, but it does not make the pack maintenance-free. DJI says an Avata 2 battery left idle automatically discharges to about 96% after three days and to about 60% after nine days. Some warmth during automatic discharge is normal. DJI also advises fully charging the battery at least once every three months.

• Charge within the specified range: DJI lists 5°C to 40°C. Let a hot post-flight battery cool before charging.
• Inspect before every outing: Do not use a battery with swelling, impact damage, leakage, damaged terminals, or abnormal behavior.
• Keep contacts clean and dry: Protect the battery and hub from moisture, debris, and conductive objects.
• Avoid long-term full storage: Let the battery's automatic discharge function work and do not repeatedly top it back to 100% when no flight is planned.
• Use the intended charging system: Charge in the Avata 2 aircraft or compatible Avata 2 hub with an appropriate USB PD power source.

Flying with spare batteries in the United States

The Avata 2 battery is rated at 31.7 Wh, below the FAA's 100 Wh threshold. The FAA requires spare lithium batteries to travel in carry-on baggage, not checked baggage, and their terminals must be protected against short circuit. A battery installed in equipment is treated differently, but airline-specific rules can be stricter. Confirm the current policy with the operating airline before travel.

Damaged, defective, or recalled batteries should not be taken aboard an aircraft. For a fuller explanation of voltage, storage, and handling across FPV battery types, use the FPV drone battery safety guide, while remembering that Avata 2 uses its own intelligent battery and charging system.
