BETAFPV Aquila20 Range Explained: ELRS Control vs Analog Video

Aquila20 Range at a Glance

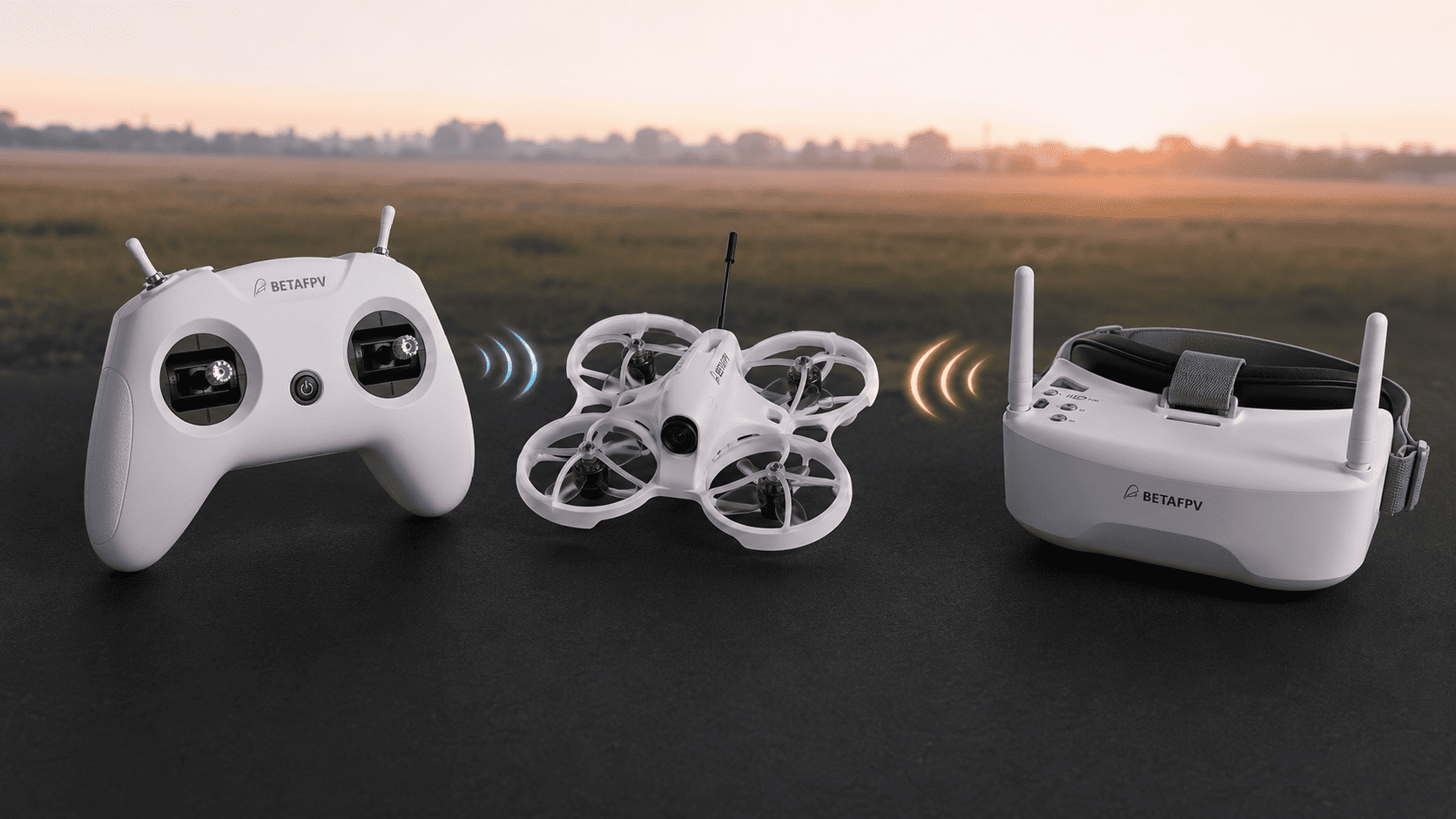

The Aquila20 uses two independent radio-frequency links. The controller sends stick and switch commands over ExpressLRS at 2.4GHz. The drone sends its camera picture to the VR04 goggles through a separate analog transmitter in the 5.8GHz band. A published distance for one link does not automatically apply to the other.

The useful planning number is therefore not "ELRS range." It is the distance at which the pilot still has a dependable picture, control, battery reserve, and a clear route home. On the stock analog kit, the video link is the part with a published 80-to-200-meter envelope.

Why Control Range and Video Range Are Different

The ExpressLRS control link

The included LiteRadio 4 SE communicates with the Aquila20 through ExpressLRS 2.4GHz V3. This link carries the pilot's commands. It does not carry the camera picture.

ExpressLRS normally evaluates a radio link using received signal strength and Link Quality. The ExpressLRS documentation explains that RSSI describes how strongly a signal is received, while Link Quality describes how many valid packets are being understood. High signal strength alone does not guarantee a clean link when interference is present.

The Aquila20 manual does not publish a control-link distance or document a stock ELRS Link Quality readout for the pilot. That means a generic range demonstration for another ELRS radio or receiver is not a defensible Aquila20 control-range claim. The LiteRadio 4 SE output, its internal antenna, the drone's receiver installation, packet configuration, interference, and obstacles all affect the result.

The analog video link

The drone's C04 camera and analog VTX transmit the image separately to the VR04 goggles. The manual identifies the goggles as a 5.8GHz receiver with one foldable antenna. It also explains that the stock drone uses eight frequencies in Band B.

Analog video usually provides visible warning as conditions deteriorate. Noise, rolling, breakup, or a weak image may appear before the picture becomes unusable. That warning is valuable only if the pilot turns back while the image is still adequate. A control link that remains connected after the picture is unsafe to fly does not create additional usable range.

If you are new to the relationship between the radio, receiver, camera, VTX, and goggles, the FPV system explainer shows how those components work together.

What Aquila20 Range Should You Expect in Practice?

BETAFPV's 80-meter and 200-meter figures are useful reference points, but they do not define what every owner will see. The company does not publish the antenna orientation, interference level, flight altitude, obstruction, receiver orientation, or other conditions used for those numbers.

Oscar Liang's attributed hands-on review provides an important counterpoint. During his test, the analog picture became noticeably glitchy at about 100 meters, and a couple of trees between the drone and pilot made the feed close to unflyable. His teardown also found the VTX antenna tucked inside the frame near other electronics, which he identified as a likely limitation. That is one test of one aircraft, not a universal measurement, but it demonstrates why a favorable-condition specification should not become a fixed flight plan.

A reasonable expectation is therefore an operating area somewhere inside the published 80-to-200-meter video envelope, with substantial variation by power setting and environment. The documented 100-meter test result is more useful than promising that every kit will comfortably exceed 200 meters.

How VTX Power Changes the Aquila20's Range

The Aquila20 manual says the analog VTX is set to 25mW at the factory. The maximum option is 350mW. Increasing that setting changes the analog-video transmitter only. It does not raise the LiteRadio's ELRS output power or establish a new control-link distance.

The difference is large in power but smaller in published distance. A 350mW setting is 14 times the transmitter power of 25mW, while BETAFPV's listed range grows from 80 to 200 meters, or 2.5 times. That comparison is a useful reminder that transmitter power is only one part of the radio path. Antennas, receiver design, noise, obstruction, and signal geometry still matter.

How to verify or change the VTX setting

1. Place the aircraft upright and keep it disarmed.
2. Enter the OSD menu using the stick command shown in the Aquila20 manual: move the throttle stick fully left while moving the direction stick fully upward.
3. Open CONFIG, select POWER, and choose the permitted VTX power.
4. Select BACK, then select SAVE from the main menu before exiting.
5. Confirm that the video is stable at short range before increasing distance.

Use the manual that matches the aircraft and firmware in front of you. Available transmitter power and permitted use can vary by product version and jurisdiction. Do not assume the highest menu option is legal everywhere.

How to Improve Usable Range Safely

The goal is not to find the first point where the picture completely disappears. It is to preserve enough margin to recognize a problem, turn around, and return without losing orientation or video.

• Start with a clear area. BETAFPV specifically warns that numerous obstacles can affect both controller and image transmission.
• Check the actual VTX power. A new aircraft normally starts at 25mW, not 350mW.
• Scan before flying. The VR04 goggles can scan the 5.8GHz band and identify channel activity. The stock aircraft uses the eight Band B frequencies listed in the manual.
• Match the frequency deliberately. With the aircraft upright, the SD switch cycles through its eight VTX frequencies. Make sure the drone and goggles are on the same clean channel.
• Keep the antenna clear. Fully deploy the VR04 antenna and avoid covering it with a hand, clothing, or nearby equipment.
• Increase distance in stages. Fly a short outbound leg, turn back, and review the picture quality before extending the next leg.
• Turn around when degradation begins. Do not keep flying away until the picture is barely usable.
• Maintain visual-line-of-sight planning. BETAFPV instructs pilots to keep the aircraft within visual line of sight and to use an observer when needed while flying with goggles.
• Leave battery reserve. Manufacturer-rated flight time does not convert directly into safe out-and-back distance, especially in wind.

For a broader explanation of antennas, signal health, GPS Rescue, battery margin, and failsafe planning, see the long-range FPV setup guide. The Aquila20 should still be treated as a short-range beginner trainer within that larger framework.

Can Goggles or Antenna Upgrades Extend the Range?

Potentially, but an upgrade cannot turn the stock Aquila20 into a purpose-built long-range aircraft. The VR04 is an analog 5.8GHz goggle with a single receiver antenna. A compatible receiver with better antenna options or diversity reception may improve the usable video link, especially when aircraft orientation changes. It will not change the drone's maximum VTX power, the control transmitter, the battery system, or the lack of a listed GPS recovery feature.

Oscar Liang reports that the VR04 antenna uses a removable RP-SMA connection, but he also notes that the receiver is not diversity-capable and does not accept an external receiver module. An antenna change can therefore be a targeted improvement, while a major receiver upgrade generally means changing goggles.

Before spending money on range hardware, decide whether the actual goal is clearer analog video in a yard or field, or genuinely longer-distance flying. The first goal may justify a modest goggle or antenna improvement. The second calls for a different aircraft and video system designed around range, navigation, recovery, and battery reserve.

The range figures in this guide apply to the analog Aquila20 kit. The Aquila20 HD uses a different digital video system. Use the Aquila20 analog versus HD comparison before applying one model's transmission claim to the other.
